Metering / Pneumatic Pump

Get a free Enquiry

Alum Dosing System

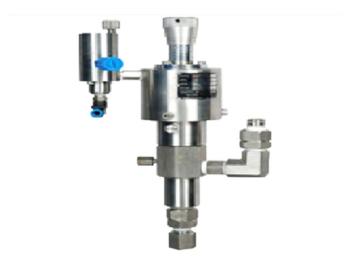

Metering / Pneumatic Pump

Features :

  • Input Air / Gas Supply: 2–9 Kg/Cm²
  • Steady State Accuracy Of ± 1.0 % Or Better.
  • Ceramic Plunger – Optionally Ceramic Coated / Hard-Faced Stainless Steel.
  • Flow Control By Stroking Rate With Stroke Delay Timer And Stroke Length Variation With An Accurate Micro Meter Stroke Adjustment Device
  • Flow Turndown Ratio Of 100:1 (By A Combination Of Stroke Rate And Stroke Length Adjustment )
  • Simple Operation, Minimum Working Parts, Field Serviceable Pumps.
  • Max Pressure 150 Kg/Cm²
  • Plunger Type In SS 316 Construction.
  • Field Adjustable Maximum Pressure Cut Off By Control Of Input Air Supply From Air Filter Regulator Assembly

Available Model:

  • UDPP 6030 - 0 TO 11.5 LPH

Optional Accessories :

  • Tank And Piping With Or Without Insulation.
  • Complete Skid Mounted Chemical Dosing/Injection Skid With Instrumentation, Piping, Valves, Strainers, Flow Meters, Flow Rate Totalizer’s And Accessories.
  • Flameproof Tank Electrical Heaters
  • Flow Rate Measuring And Monitoring Device(Available In Flameproof And Non Flameproof Construction)

System Features-Compact Skid Mounted Packaged Portable Chemical Dosing System With:

  • Air / Natural Gas Operated Chemical Dosing Pump,
  • 100 To 5000 Ltr Cs / Ss Tank With Level Gauge And Rockwool Insulation
  • Rigid Skid For Rough Handling.
  • Inbuilt Calibration Pot.
  • Ss Interconnecting Piping With Ball Type Isolation Valve, Suction Strainer, Ferrule Fittings For Leak Proof Operation.
  • Pump, Calibration Pot And Frl Mounted In A Lockable Enclosure For Safety.
  • Epoxy Painted For Corrosion Resistance.
  • Piping Designed For Use Of Thick Viscous Liquids During Winters Also.
  • Optional – Pump Flow Rate Measuring And Monitoring Device Up To 200 Bar To Record, Store And Monitor Pump Flow Rate, Flow Totaliser, Enabling The User To Calculate Hourly And Cumulative Working Of The Pump Derived By Computing The Total Flow Per Unit Time. Measuring And Controlling Devices Available In Flame Proof And Non-Flame Proof Construction/Housing.

Standard Accessories :

  • Inlet Air/Gas Filter & Pressure Regulator.
  • Calibration Pot.
  • Interconnecting Piping.
  • All Built Into A Cabinet.
Available Models:
Model Capacity Range – Lph
PP-0.25 0.1 to 2.5
PP-0.5 0.1 to 5.0
PP-1.0 0.1 to 10
PP-2.0 0.2 to 20
PP-3.0 0.3 to 30
PP-5.0 0.5 to 50
PP-7.5 0.75 to 75
PP-10.0 1.0 to 100

PRODUCT DETAILS:

  • Series - PP Series.
  • Type - Single Acting Reciprocating Plunger Type.
  • Capacity – Range 0.025 To 100 LPH Max.
  • Max. Discharge Pressure - Upto 150 Kg/Cm²
  • Material Of Construction - SS304, SS316, SS316L
  • Capacity Adjustments - Micrometer Adjustment And Speed Relay Timer
  • Temperature Range - 30° C To 100° C
